MONDRAKER F-PODIUM CARBON (SPE) 2022 - CARBON/DIRTY WHITE
Kód: 2MD010.22044SPE-LDetailní popis produktu
MONDRAKER F-PODIUM CARBON (SPE) 2022 - CARBON/DIRTY WHITE
Technické parametry
vyráběné velikosti
S: 390mm / M: 420mm / L: 470mm / XL: 510mm
S: 390mm / M: 420mm / L: 470mm / XL: 510mm
hmotnost
11,5 Kg
11,5 Kg
rám
F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 100mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 100mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
vidlice
Fox 34 Step Cast Float Grip Evol Performance, 110mm, tapered steerer tube,15x110mm Boost axle, offset 44mm. Settings: remote 2pos Push-unlock, rebound, air preload, fox dual pull
Fox 34 Step Cast Float Grip Evol Performance, 110mm, tapered steerer tube,15x110mm Boost axle, offset 44mm. Settings: remote 2pos Push-unlock, rebound, air preload, fox dual pull
hlavové složení
Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom
Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom
přehazovačka
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
řazení
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
brzdové páčky
Sram Level TL, Direct Link actuation, tooled reach adjust, lever pivot bushings
Sram Level TL, Direct Link actuation, tooled reach adjust, lever pivot bushings
kliky
Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
středové složení
Sram DUB BSA, sealed bearings, 73mm
Sram DUB BSA, sealed bearings, 73mm
řidítka
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
představec
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
sedlovka
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
sedlo
Fizik Antares R7
Fizik Antares R7
náboj přední
Mavic, Boost 15x110mm, IS 6 bolts
Mavic, Boost 15x110mm, IS 6 bolts
náboj zadní
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
řetěz
Sram SX Eagle, 12s, Powerlock
Sram SX Eagle, 12s, Powerlock
kazeta
Sram PG-1230, 11-50T, 12s
Sram PG-1230, 11-50T, 12s
dráty
Mavic straightpull duble butted, contactless lacing
Mavic straightpull duble butted, contactless lacing
ráfky
Mavic Crossmax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes
Mavic Crossmax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes
pláště
Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead,Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead,Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
obj.c.
010.22044SPE
010.22044SPE
gripy
Onoff Diamond, 1lock-on, 135mm
Onoff Diamond, 1lock-on, 135mm
tlumič
Fox Float DPS SV Performance Elite, 185x47,5mm. Settings: 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Fox Float DPS SV Performance Elite, 185x47,5mm. Settings: 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
přední brzda
Sram Level TL, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Sram Level TL, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
zadní brzda
Sram Level TL, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Sram Level TL, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
nastavení tlumiče
Firm compression, light rebound, air volume spacer 0.2
Firm compression, light rebound, air volume spacer 0.2
patka k přehazovačce
Sram UDH
Sram UDH

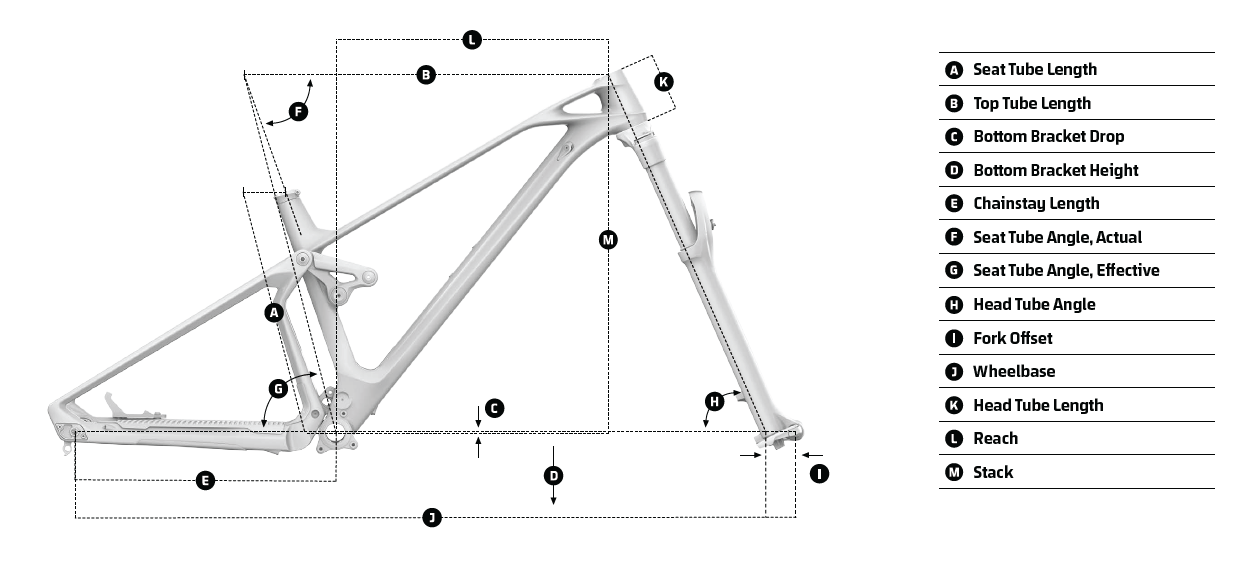

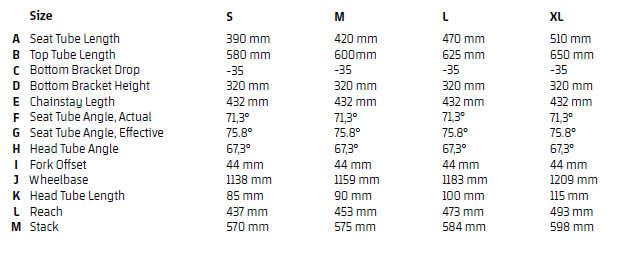

Geometrie
Doplňkové parametry
| Kategorie: | Horská kola |
|---|---|
| Barva rámu: | Bílá, Černá |
| Modelový rok: | 22/23 |
| Odpružení: | Celoodpružené (Full) |
| Určení: | Unisex, Pánské |
| #tabulka-velikosti#: | https://www.skiandbike.cz/tabulka-velikosti-mondraker-f-podium/ |
| Váha: | 11.5kg |
