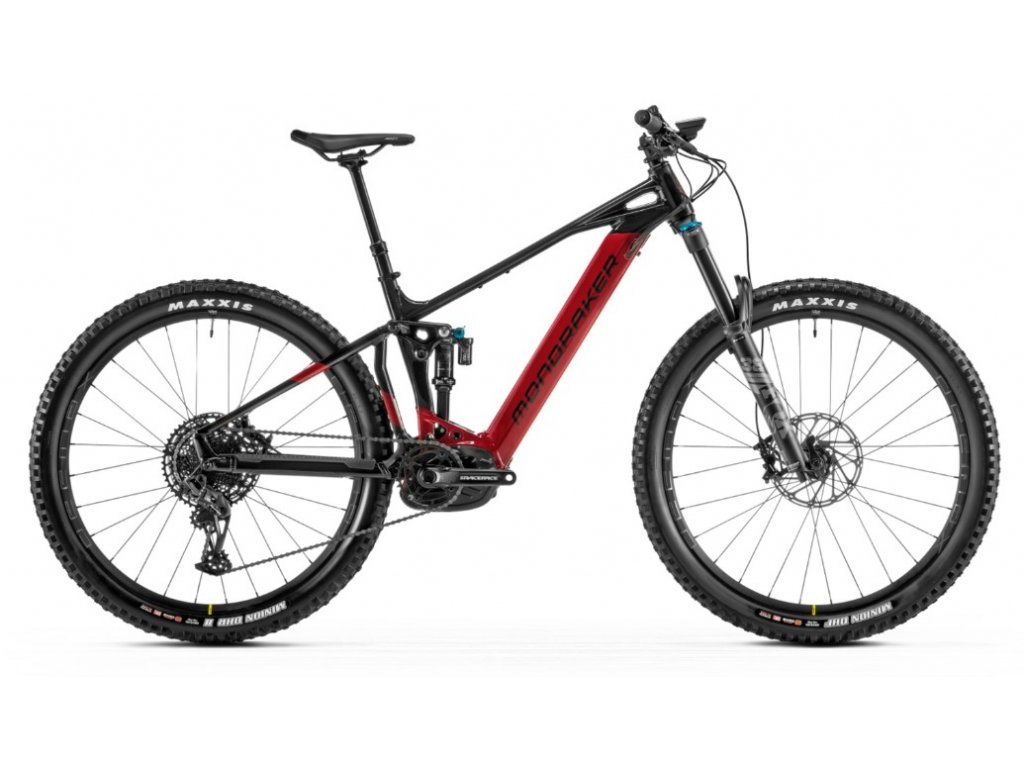

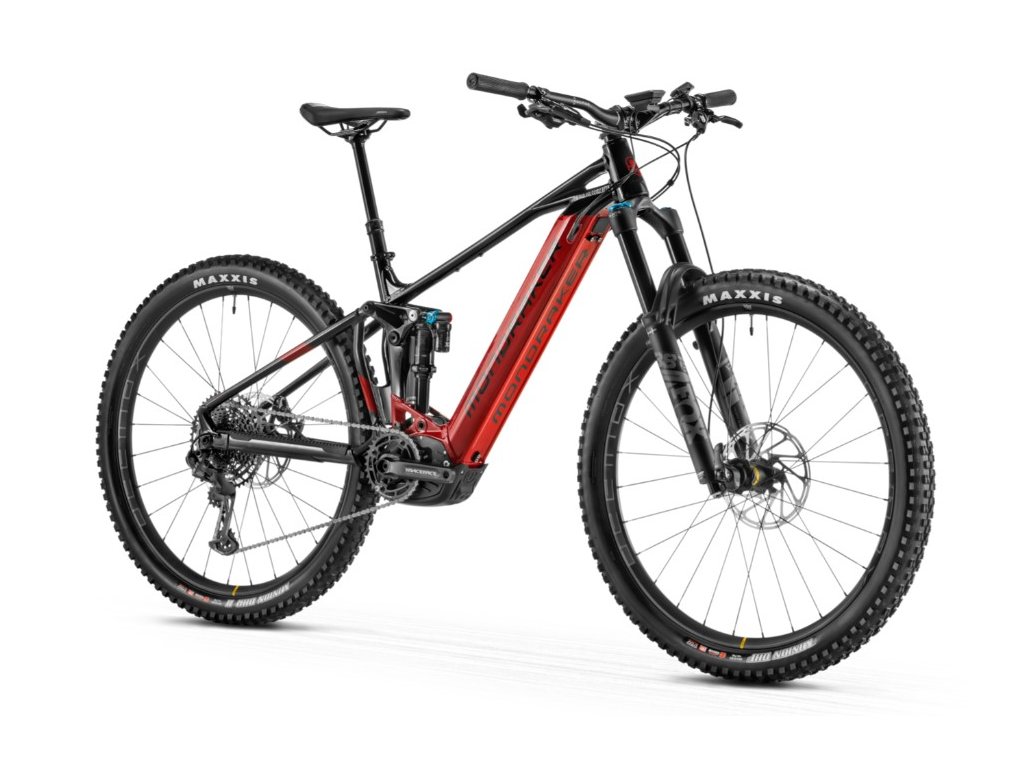

MONDRAKER CRAFTY R 2022 - BLACK/CHERRY RED
Kód: 2MD010.22228-LDetailní popis produktu
MONDRAKER CRAFTY R 2022 - BLACK/CHERRY RED
Technické informace
vyráběné velikosti
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
hmotnost
25,1kg
25,1kg
rám
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery with integrated alloy cover, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery with integrated alloy cover, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
vidlice
Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
hlavové složení
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
přehazovačka
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
řazení
Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
brzdové páčky
Sram G2 R, tool-free reach adjust
Sram G2 R, tool-free reach adjust
kliky
Race Face Aeffect ebike, 165mm
Race Face Aeffect ebike, 165mm
řidítka
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
představec
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
sedlovka
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
sedlo
FIZIK Terra Aidon X5 145mm
FIZIK Terra Aidon X5 145mm
náboj přední
Mavic, Boost 15x110mm, IS 6 bolts
Mavic, Boost 15x110mm, IS 6 bolts
náboj zadní
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
řetěz
Sram SX Eagle, 12s, Powerlock
Sram SX Eagle, 12s, Powerlock
kazeta
Sram PG-1210, 11-50T, 12s
Sram PG-1210, 11-50T, 12s
dráty
Mavic J-bend duble butted, contactless lacing
Mavic J-bend duble butted, contactless lacing
ráfky
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
pláště
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
obj.c.
010.22228
010.22228
gripy
Onoff Diamond, 1lock-on, 135mm
Onoff Diamond, 1lock-on, 135mm
tlumič
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
přední brzda
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
zadní brzda
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
nastavení tlumiče
medium compression, medium rebound, air volume spacer 0.2
medium compression, medium rebound, air volume spacer 0.2
převodník
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
patka k přehazovačce
Mondraker M068
Mondraker M068
motor+baterie
Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3 , Bosch Powertube 750Wh, Bosch Kiox 300
Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3 , Bosch Powertube 750Wh, Bosch Kiox 300

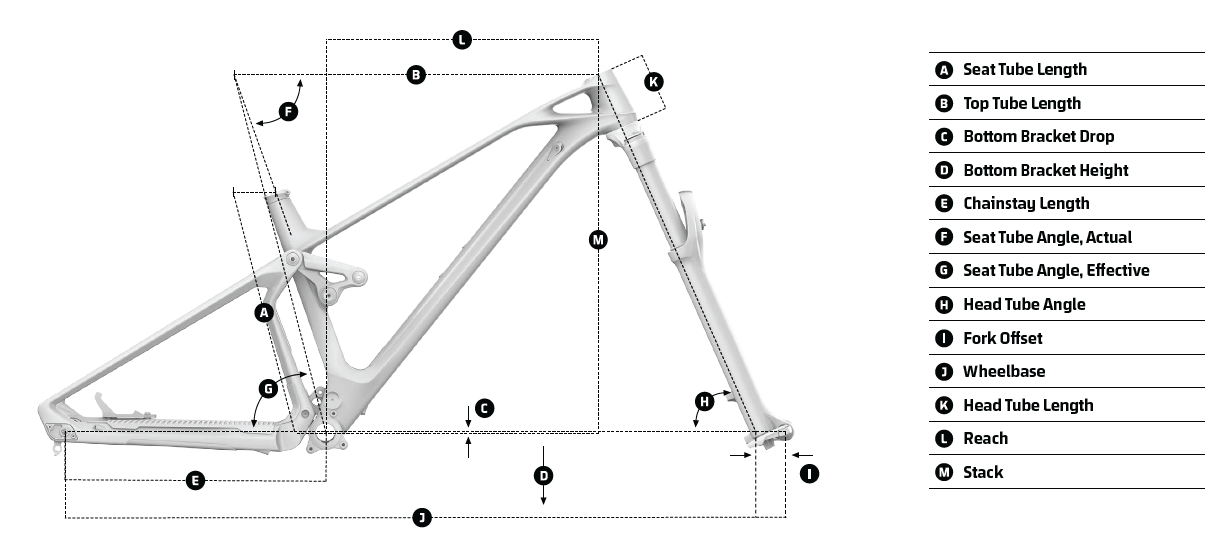

Geometrie
Doplňkové parametry
| Kategorie: | MTB e-Bike |
|---|---|
| Barva rámu: | Černá, Červená |
| Baterie: | 750 Wh |
| Modelový rok: | 22/23 |
| Odpružení: | Celoodpružené (Full) |
| Umístění baterie: | Integrovaná |
| Umístění motoru: | Střed |
| Určení: | Unisex, Pánské |
| Výrobce motoru: | Bosch |
| Váha: | 25.1kg |
| #tabulka-velikosti#: | https://www.skiandbike.cz/tabulka-velikosti-mondraker/ |
